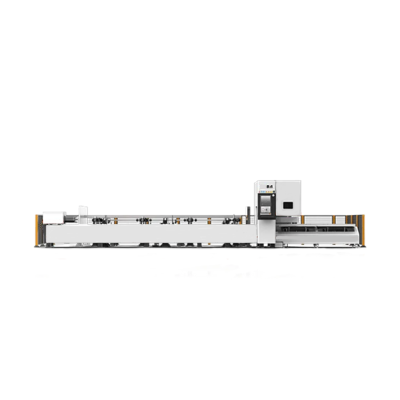

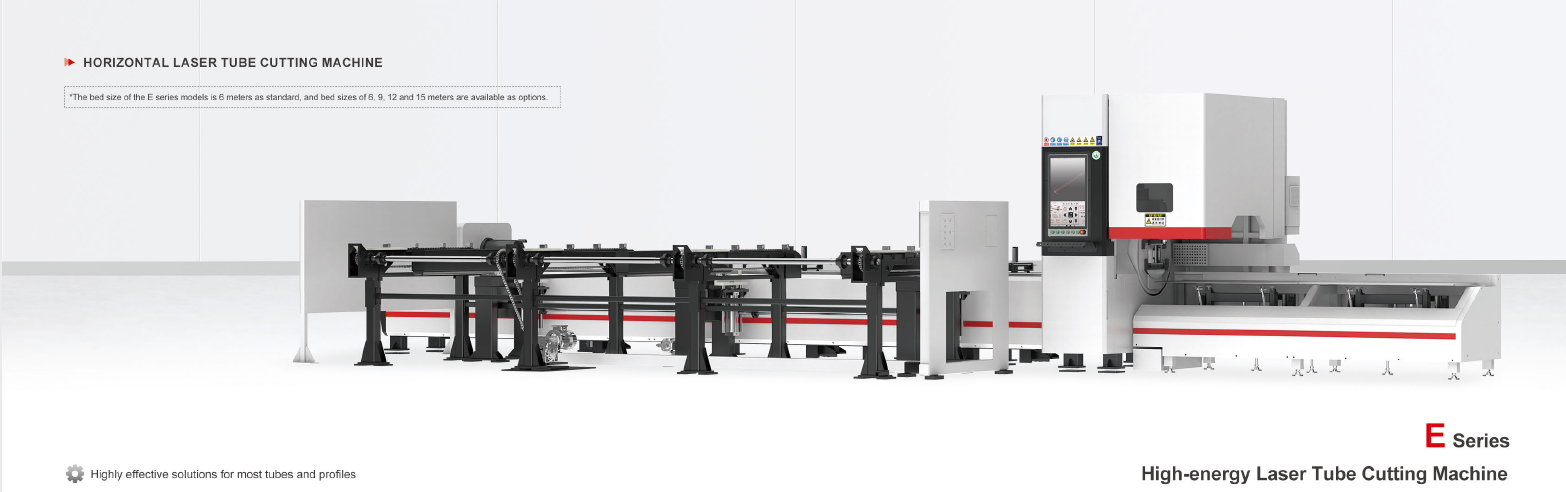

TEKMA E-series High Efficient Laser Tube Cutting Machine
Cutting ability
E-Series high efficient laser Tube cutting machine, can cut any metal Tubes, with the length of 6-12m, the diameter 8-350mm, and the weight of 1.5 tons or less
Chuck technology
square hole design, strong Tube passing rate, achieving the widest working range, helping reduce equipment investment;
High dynamic performance
machine with 120mm chucks, chuck moving speed 110m/min, speed 200r/min, acceleration 1.5G
More ACME self-developed technologies
mortise and tenon structure bed, segmented servo support, automatic unloading device, etc., to ensure cutting accuracy
User-friendly design
weld identification, safety light curtain, dust removal design, etc. well protect workers, machines and work-pieces
| Model | 6012EC | 6026ES | 9028EA | 12036EKA |
| Laser power | 1-30kw | 1-30kw | 1-30kw | 1-30kw |
| Tube diameter | 8-120mm | 15-250mm | 15-280mm | 30-350mm |
| Processable pipe length | < Dari 6300mm | < Dari 6300mm | < Dari 9300mm | < Dari 12300mm |
| Cutting end material | > Dari 65mm | > Dari 65mm | > Dari 65mm | > Dari 65mm |
| Maximum acceleration | 1.5G | 1.2G | 1.0G | 0.7G |
| Dimension | 16100*3450*2600mm | 11600*2480*2600mm | 14600* 4000*2600mm | 17600*4000*2600mm |
| Tube Types | Square pipe, round pipe, rectangular pipe, I-beam, H-beam, angle steel, channel steel and special pipe fittings, etc. | |||
Autonomous Technology

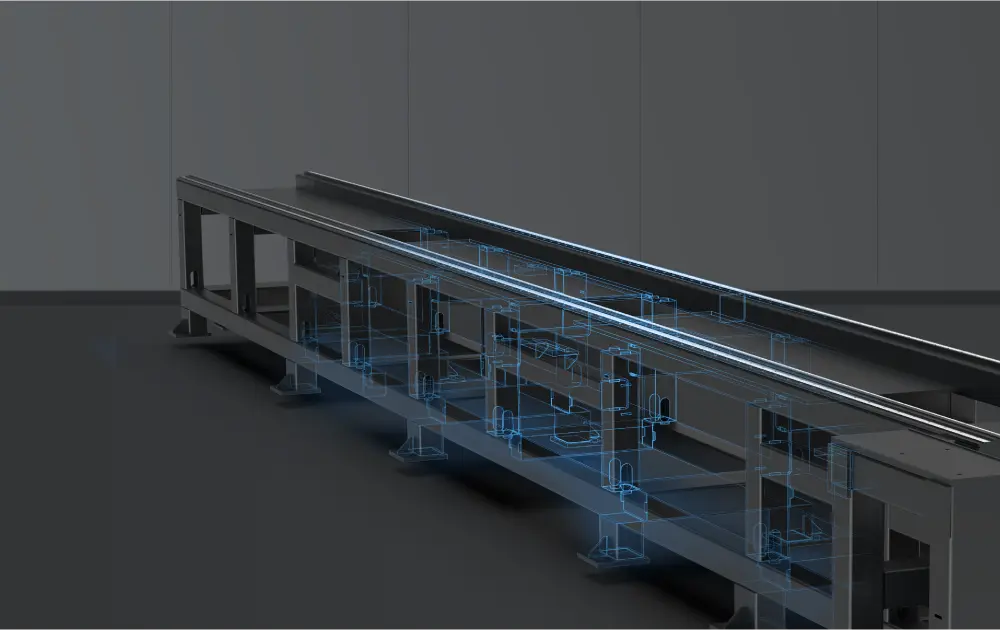

Mortise and tenon structure bed
Each steel plate and each steel Tube of the bed is cut by laser, and the bed structure is professionally plug-in designed, with a position accuracy error of no more than 0.5mm, which effectively improves the service life and production efficiency of the equipment.

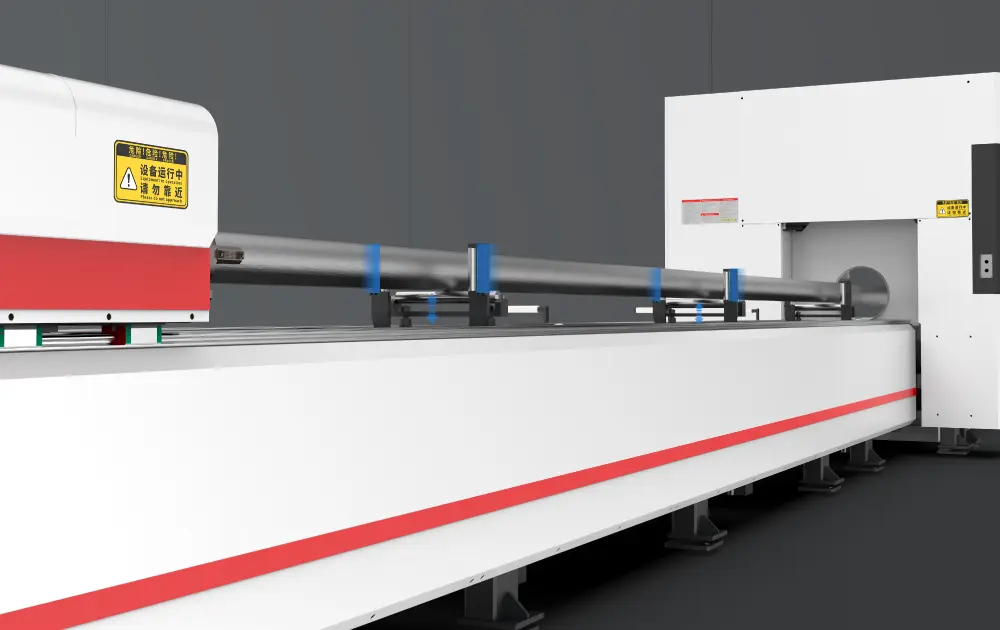

Segmented servo support
Cooperating with the system intelligently, it can self-center various Tubes and adjust the height in real time to achieve optimized control during the cutting process and ensure cutting accuracy. Reduce adjustment time and speed up the production process.

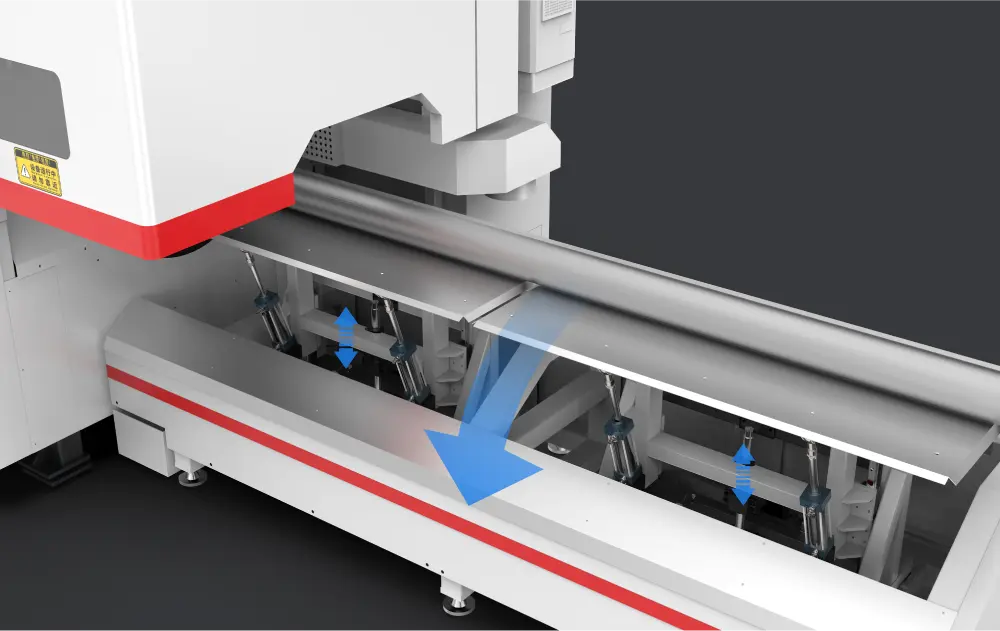

Automatic unloading device
Follow-up servo support for unloading, as the height of the Tube rotating, real-time adjustment, smooth blanking inertia, and ensure uniform blanking of the Tube. Protect the surface of the work-piece from damage and ensure the quality and accuracy of the work-piece.
