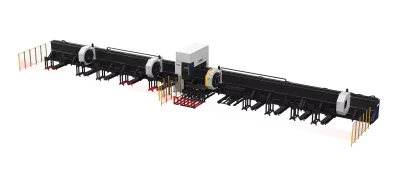

Flagship ‘4+1’ Full-track Heavy Duty Tube Beveling Fiber Laser Cutting Machine

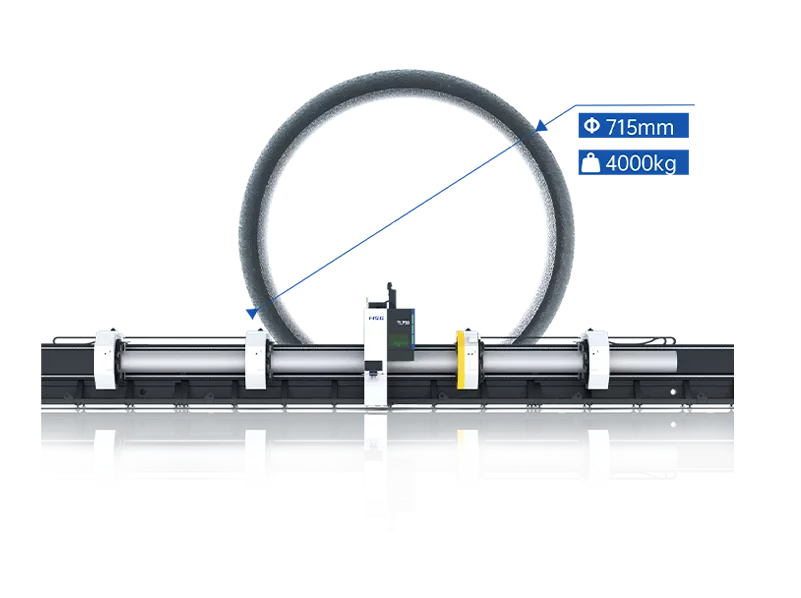

Max Heavy-duty Tube Processing Ability

The machine can process tube diameters in 715mm.
Tube Length: 16m
Weight per Tube: 4000kg

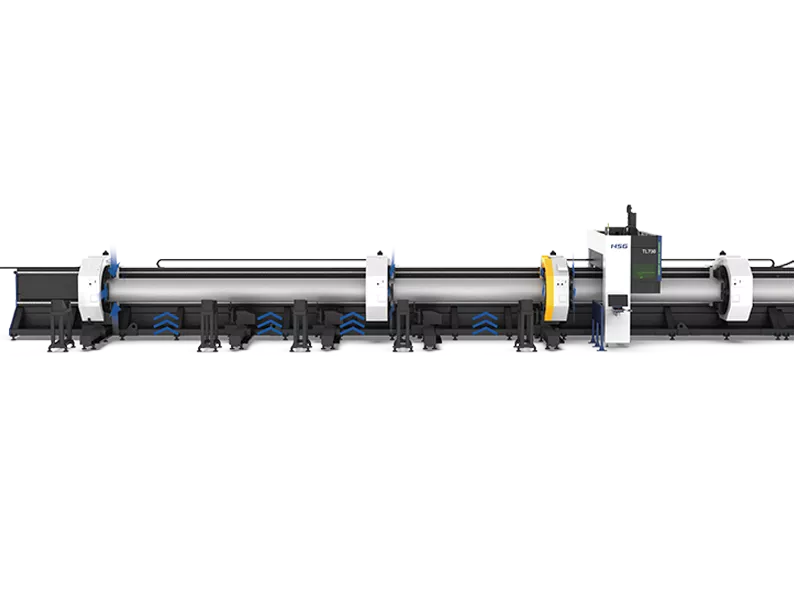

Innovate 4+1 Chucks Structure

* C3 chuck and C4 chuck are combined to achieve double support;
* There are 4 clamping points at the loading section to significantly improve load bearing;
* Two clamping points near the cutting area effectively guarantee cutting accuracy.

Intelligent Digital Chuck

* The chuck and control system communicate with each other to achieve full closed-loop control.
* Functions include jaw state detection, tube size measurement, and adaptive adjustment of clamping force.

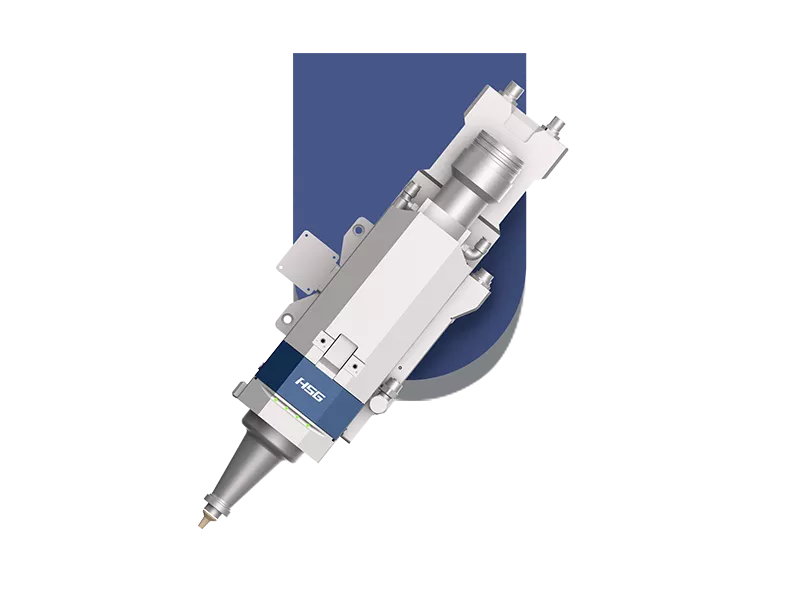

Beveling Processing

Beveling tube cutting head to achieve 045° bevel cutting.
