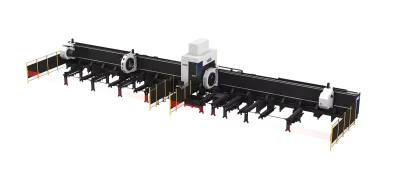

TL Four-chuck Heavy-duty Tube Fiber Laser Cutting Machine

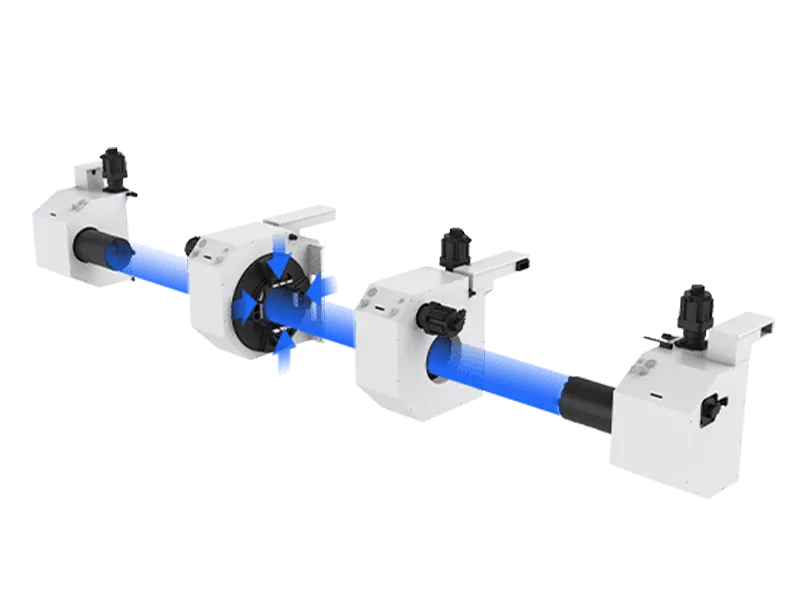

Four Chucks Structure

HSG Laser released the first generation of HSG four-chuck heavy-duty tube laser cutting machine, laying groundwork for cutting heavy, large and long tubes stably.

1. Heavy-duty pneumatic chucks for stable clamping
2. Maximum clamping diameter: 660mm (Round Tube)
3. Single tube bearing: 3000kg

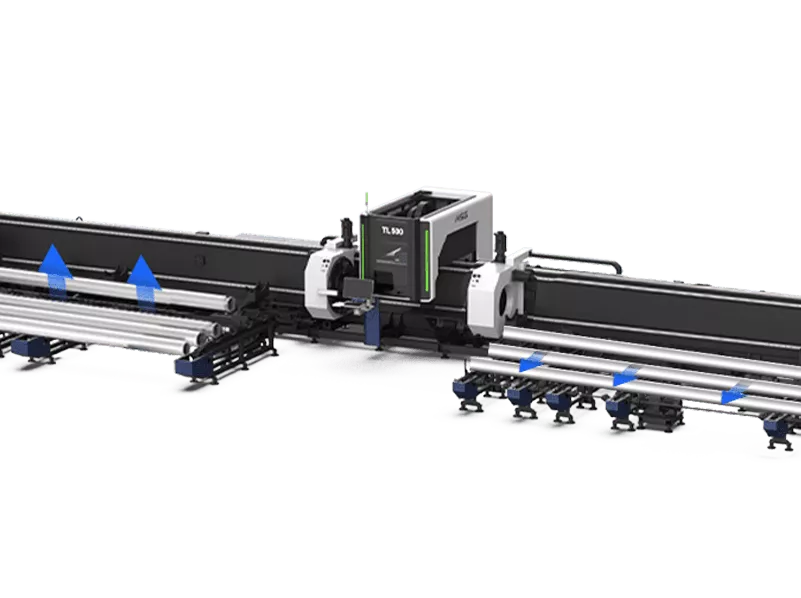

Automatic Loading and Unloading System

The system is designed for heavy-duty tube loading and unloading without shutdown waiting. It reduces unproductive time and minimizes risks caused by manual loading and unloading.

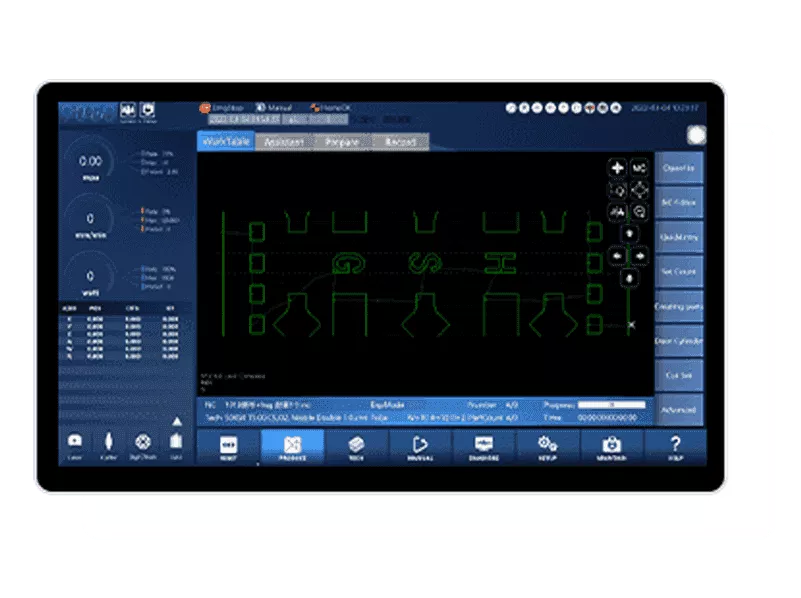

HSG-X Bus Control System

HSG-X control system is bus-based and developed by HSG Laser to provide intelligent and easy operation.

1. 21.5-inch touch screen with concise interface
2. Real-time monitoring of core components with early warning
3. Tube deviation detection
4. One-click processing report generation

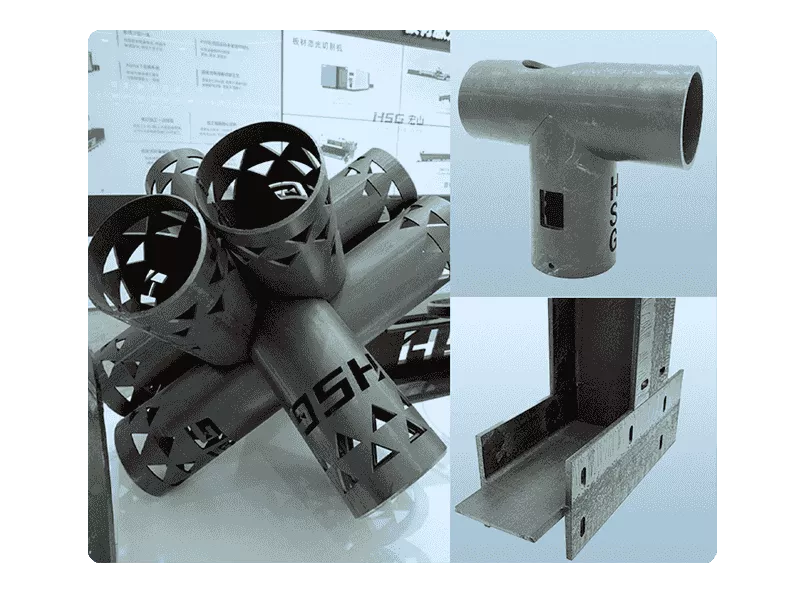

Tube Splicing Technology

The operating control offers 50+ kinds of tube splicing patterns for convenient welding, including square tube male-female joints, 90° arc splicing, tee joints, cut-through holes, hexagon joints, and more.

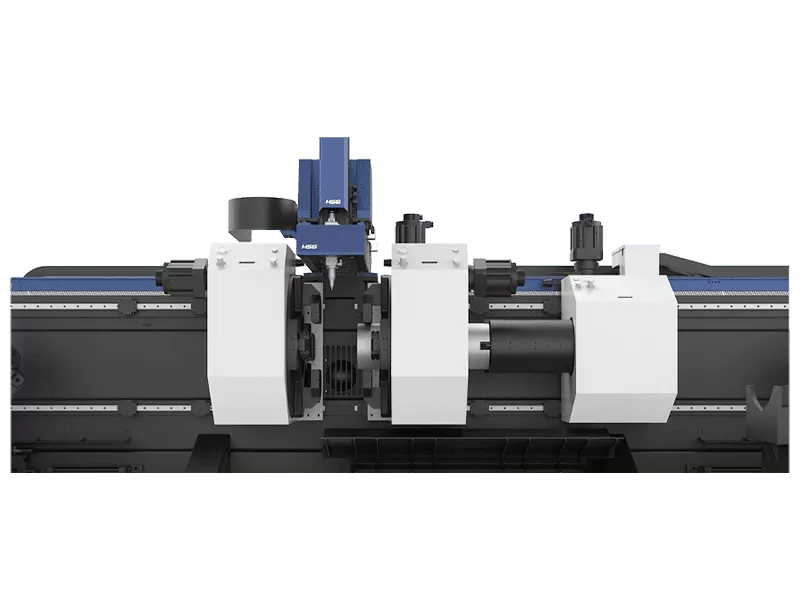

Cut with Short Tailings

Four chucks enable short tailing cutting and improve material utilization through reverse cutting mode.

Power-off Cutting Restart Technology

Imported servo motors with absolute encoders enable power-off cutting restart. Users only need one click to continue cutting without worrying about power failures.
