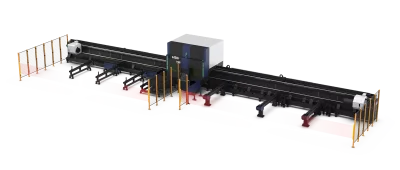

TX3R Professional heavy-duty tube laser cutting machine

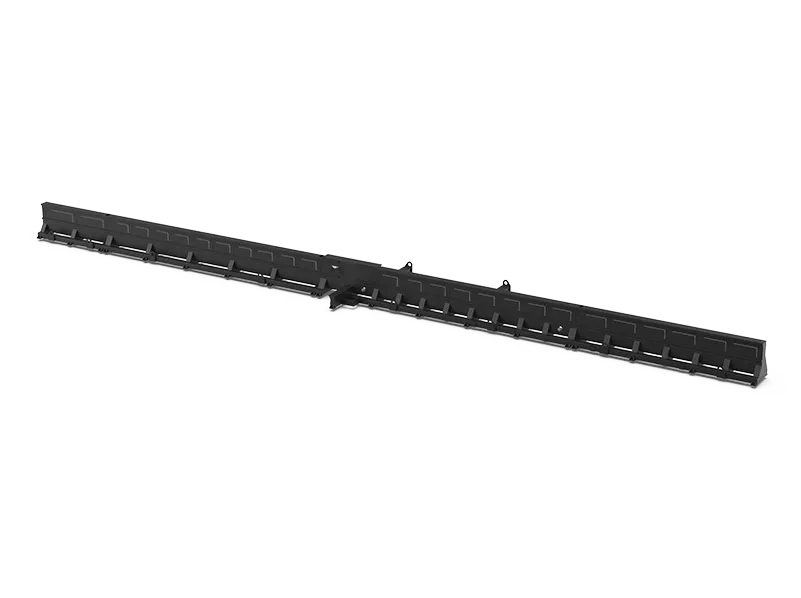

L-shaped heavy-duty lathe bed

Engineered for large and heavy tubes from the ground up.
Heavy-duty side-mounted design, the machine weighs nearly 20 tons, robust and reliable.

HSG unique intelligent chucks

With the HSG unique intelligent chucks, tubes can be manufactured across the entire clamping range from 40mm to 360mm without retooling.

The chuck has good sealing, avoids cutting smoke and slag pollution, and ensures equipment stability and long service life.

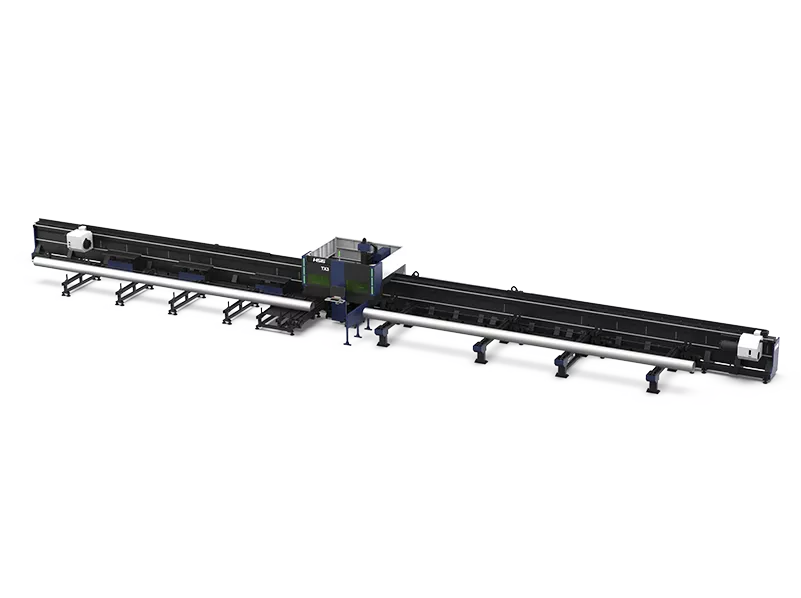

Automatic loading and unloading

Automatic loading and unloading of heavy pipes improves efficiency, shortens preparation time, enhances operational safety, and reduces labor costs.

Heavy-duty tube following support system

The heavy-duty tube following support system provides effective support during processing and improves the accuracy of heavy pipe cutting.

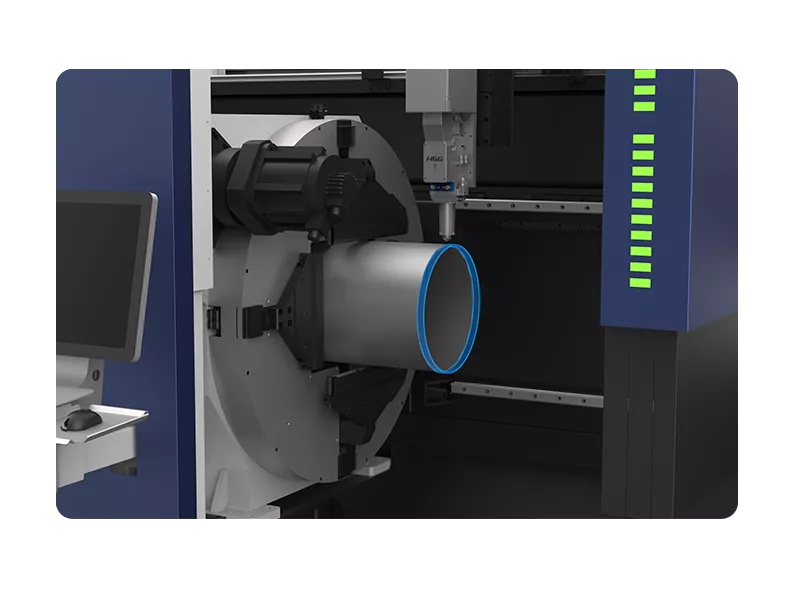

Zero tailing cutting

Multi-chuck reversing movement realizes zero tailing for heavy pipe cutting and saves material costs.

Quickly process open profiles

The machine is equipped with national-standard profile grippers, enabling easy cutting of angle steel, channel steel, and H-steel.

Bevel cuts of up to 45°

Expand your part spectrum and achieve better tube splicing with high-quality bevel cuts up to 45°.

HSG Intelligent Bus Operating System

Thanks to the comprehensive pipe processing assistance and professional pipe cutting database from HSG, tube processing becomes easier and more efficient.
