TS2 High-performance Tube Fiber Laser Cutting Machine

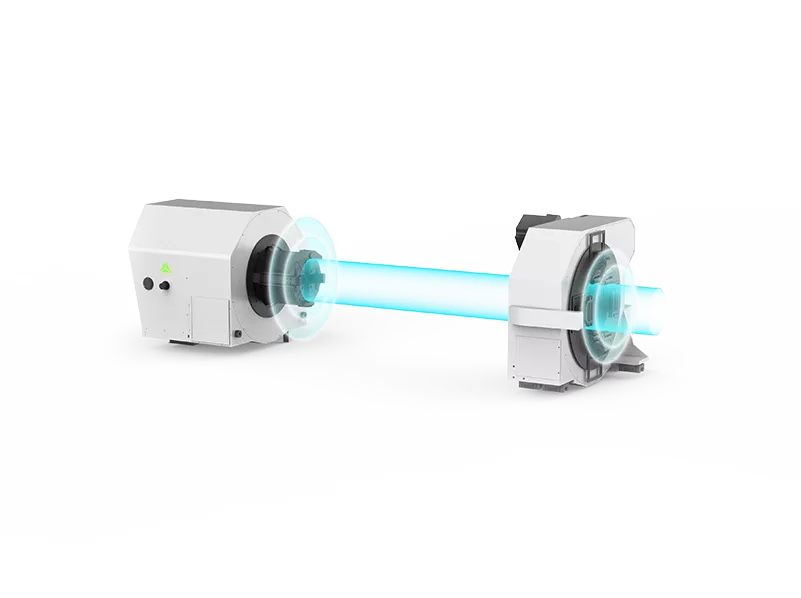

Fast Cutting

The max linkage speed is 140m/min, the acceleration is 1.4G, and the chuck rotation speed is 140r/min. Dramatically shorten the delivery cycle with high-efficiency cutting.

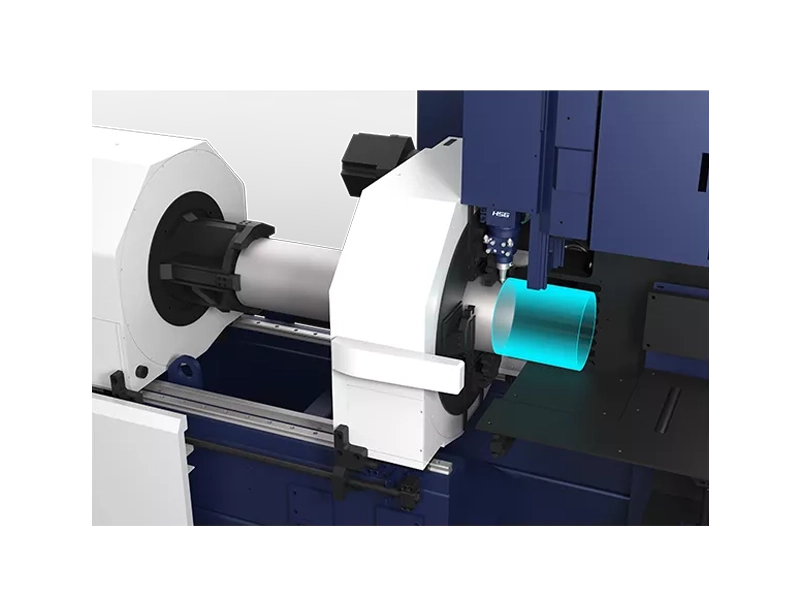

Dynamic Chuck

Two digital intelligent chuck as standard, automatically identify tube size and adjust air pressure and clamping force within 2 seconds.

The rear chuck is equipped with air and dust suction functions, keeping the tube cleaner and maintaining a clean processing environment.

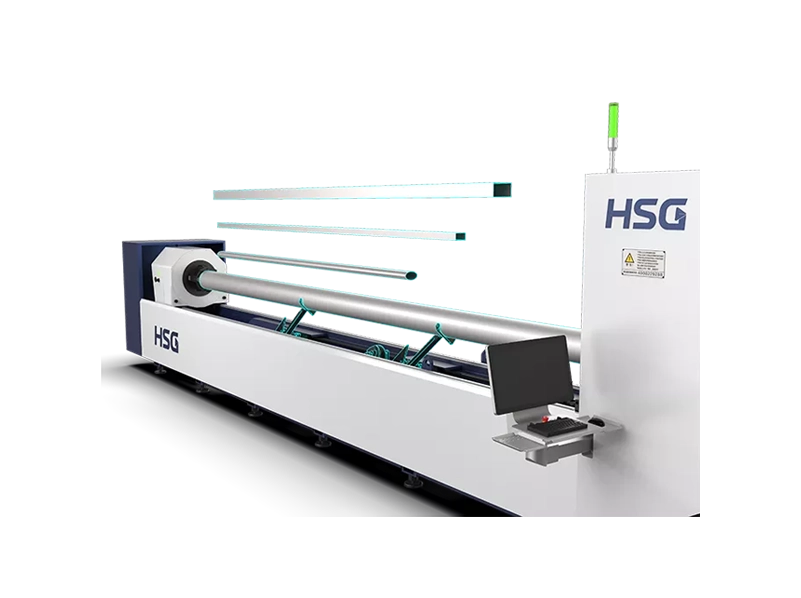

Capability of Multiple Tube Processing

Standard configuration includes two clamps for tubes and profiles, capable of processing tubes with a weight of 300kg and a diameter range of 12-273mm for round tubes.

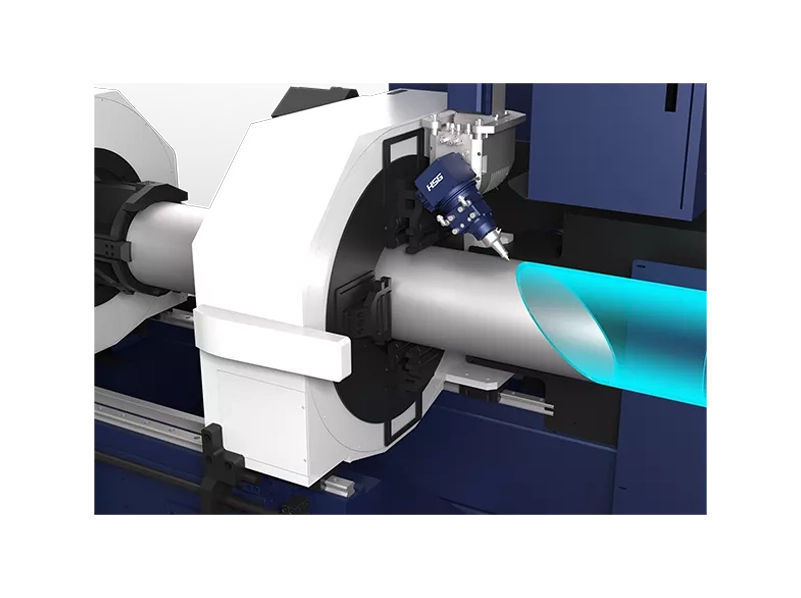

HSG 3D Cutting Technologies (Optional)

HSG-LA4 tube bevel cutting head can be optionally selected to be your secret weapon for complex tube cutting.

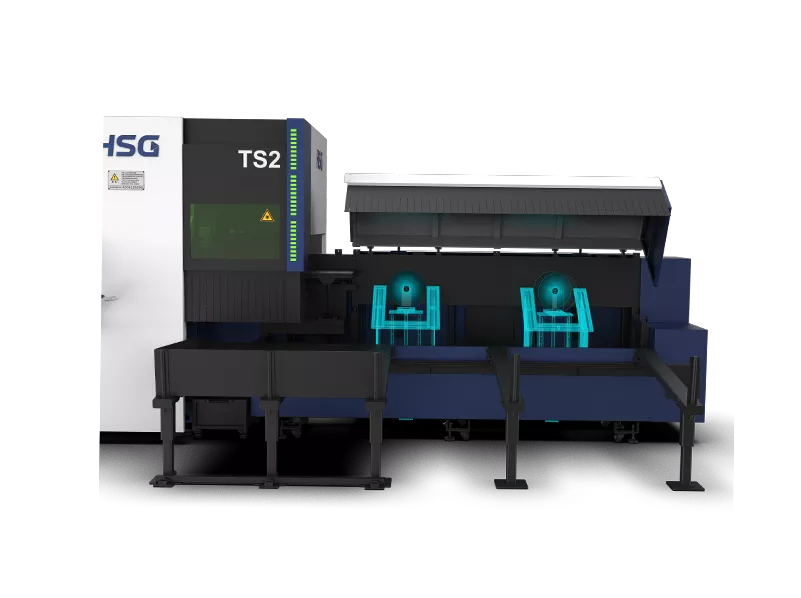

Dynamic Unloading

Intelligent adjustment of position based on the length of the workpiece with one follow-up flip board and two follow-up concave wheels.

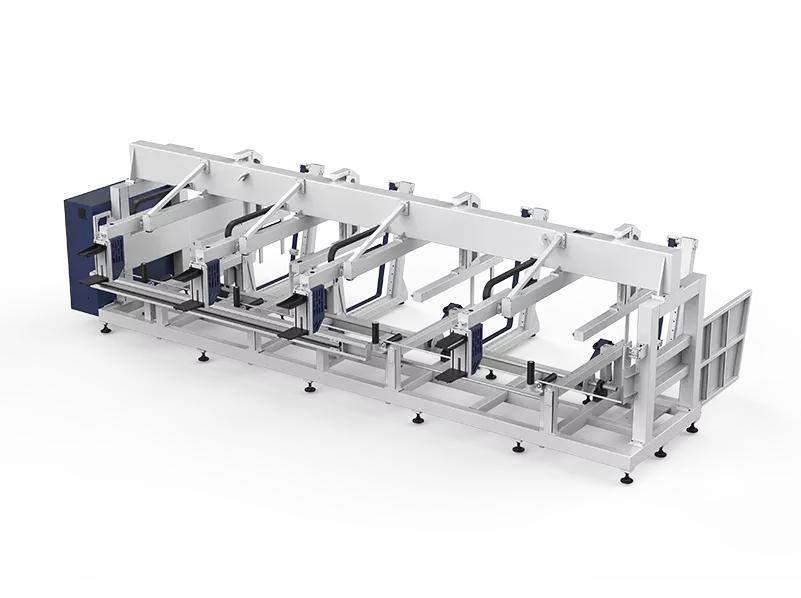

Efficient Automatic Loading Within 25s (Optional)

Optional fully automatic loading. The loading time can be as short as 25 seconds, improving processing efficiency.
