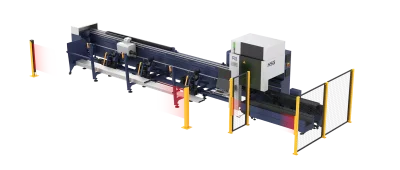

R1 High-speed Tiny Tube Laser Cutting Machine

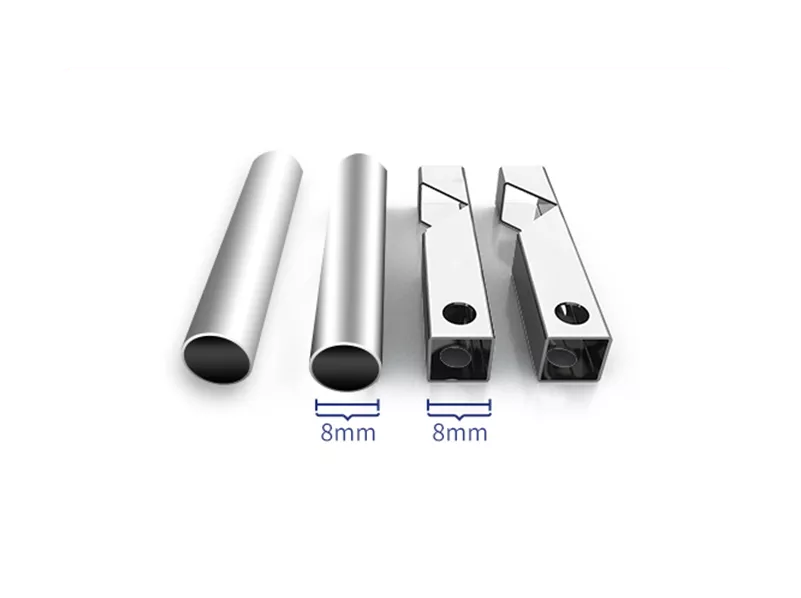

Fast and high-quality cutting of tiny tubes

Minimum diameter for round pipes: 8mm
Minimum edge length of square pipes: 8mm

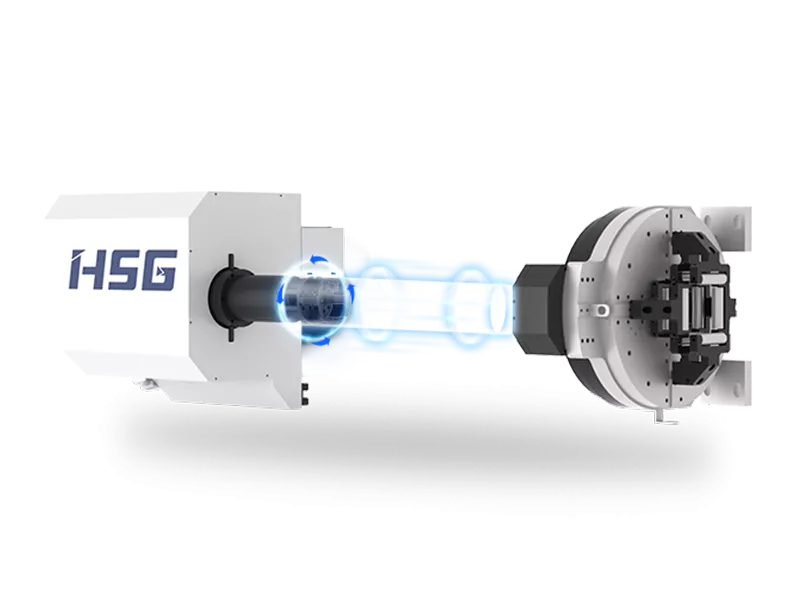

High dynamic performance

Speed of chuck:150m/min
Rotation speed of chuck:150r/min
Acceleration of chuck:1.5G

Increasing the production efficiency and productivity, significantly reduce your lead times.

Efficient Multi-mode Loading

R1 Series matches with automatic material racks to achieve loading material in 20s.
Automatic material racks support tubes with 20mm-120mm diameter and 4m-6.5m length.
Automatic material rack compatible with semi-automatic loading mode.

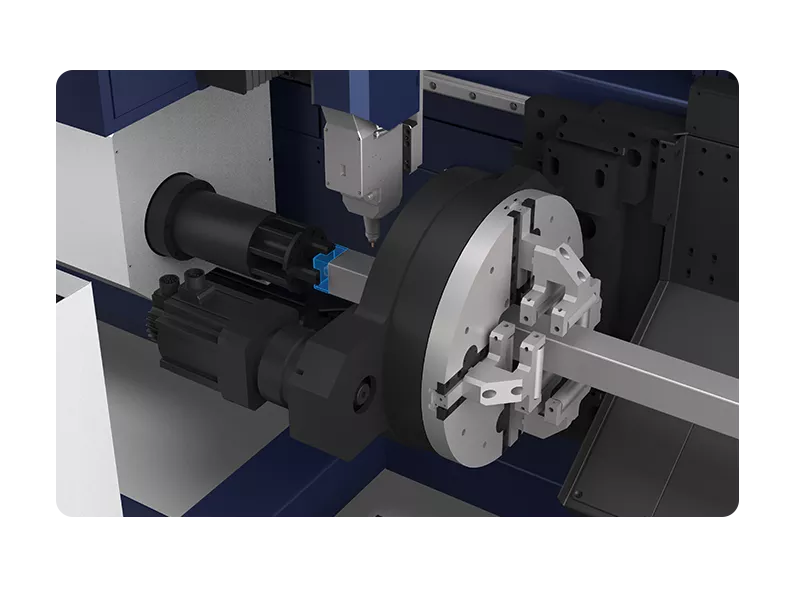

Chuck Jumping for Short Tailings

Standard equipped with chuck jumping of the cylinder.
Jumping type high-precision cutting ensures cutting accuracy of long tubes.
Optional servo chuck jumping improves efficiency.

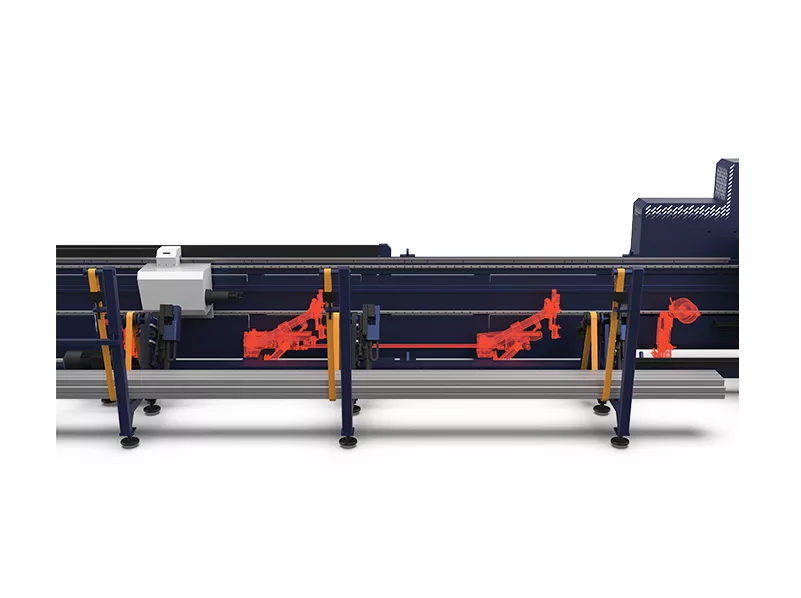

Follow-up Support for High Precision

The machine bed is equipped with highly sensitive and independent servo follow-up support to provide enough support force in rotation cutting and achieve high cutting accuracy.

Intelligent Bus Operating System

Various auxiliary functions of tube laser cutting machines to satisfy multiple processing demand.
Professional nesting software helps efficient production management and price calculations.
