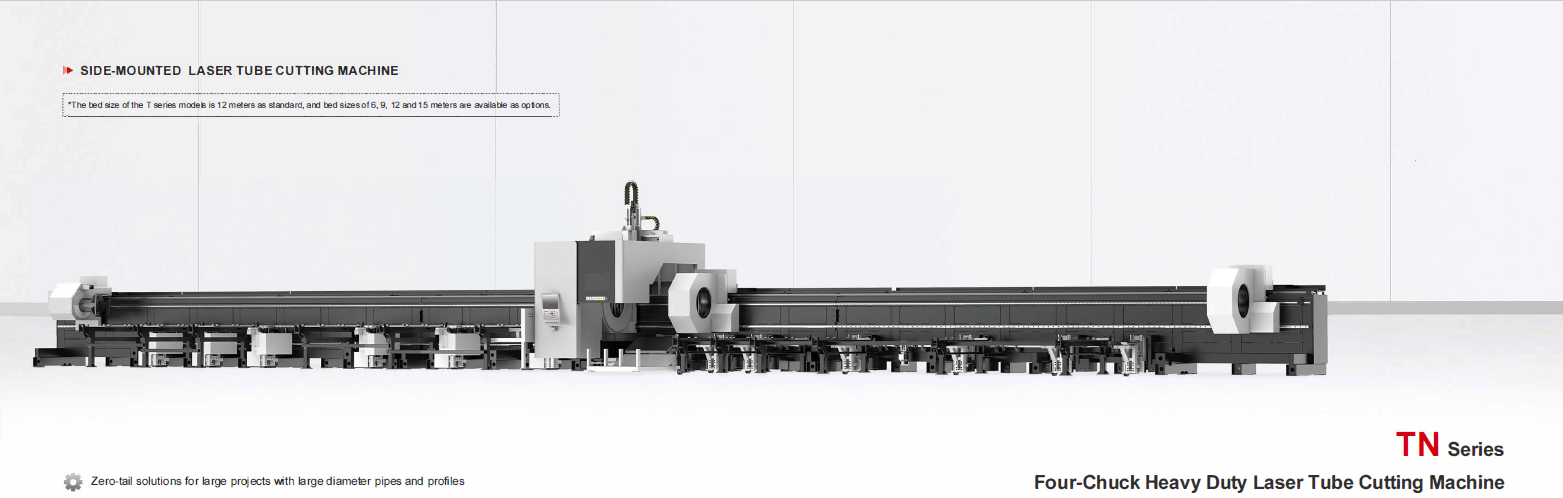

TEKMA TN Series Four-Chuck Heavy Duty Laser Tube Cutting Machine
SKU : 10103400
Description
- Four chucks work together to realize multiple supports, strong load-bearing capacity and more stable cutting
- Capable of zero-tailing cutting for super-heavy pipes and special-sized workpieces. With dual-process parallel operation,it reduces pipe processing time and improves overall processing efficiency.
- The high-power design allows for cutting materials of various wall thicknesses. It can process round pipes, square pipes, rectangular pipes, H-beams, I-beams, channel steel, angle steel, and various special-shaped pipes.
- proficient in V, Y, X, and K-type bevels, as well as gradient cutting, all without the need for secondary processing, making welding more convenient.
| Model | TNKA550 | TNKA550(Square Chuck) | TNKA650 | TNKA850 |
| Laser power | 6-30kw | 6-30kw | 6-30kw | 6-30kw |
| Tube diameter | 70-540mm | 70-540mm | 120-640mm | 200-840mm |
| Processable pipe length | < dari 12500mm | < dari 12500mm | < dari 12500mm | < dari 12500mm |
| Cutting end material | > dari 0mm | > dari 0mm | > dari 0mm | > dari 0mm |
| Load capacity | 2100kg | 2100kg | 2600kg | 3000kg |
| Dimension | 32500*4312*3750mm | 32500*4312*3750mm | 32500*4970*4000mm | 33500*5500*4000mm |
| Tube Types | Square pipe, round pipe, rectangular pipe, I-beam, H-beam, angle steel, channel steel and special pipe fittings, etc. | |||
