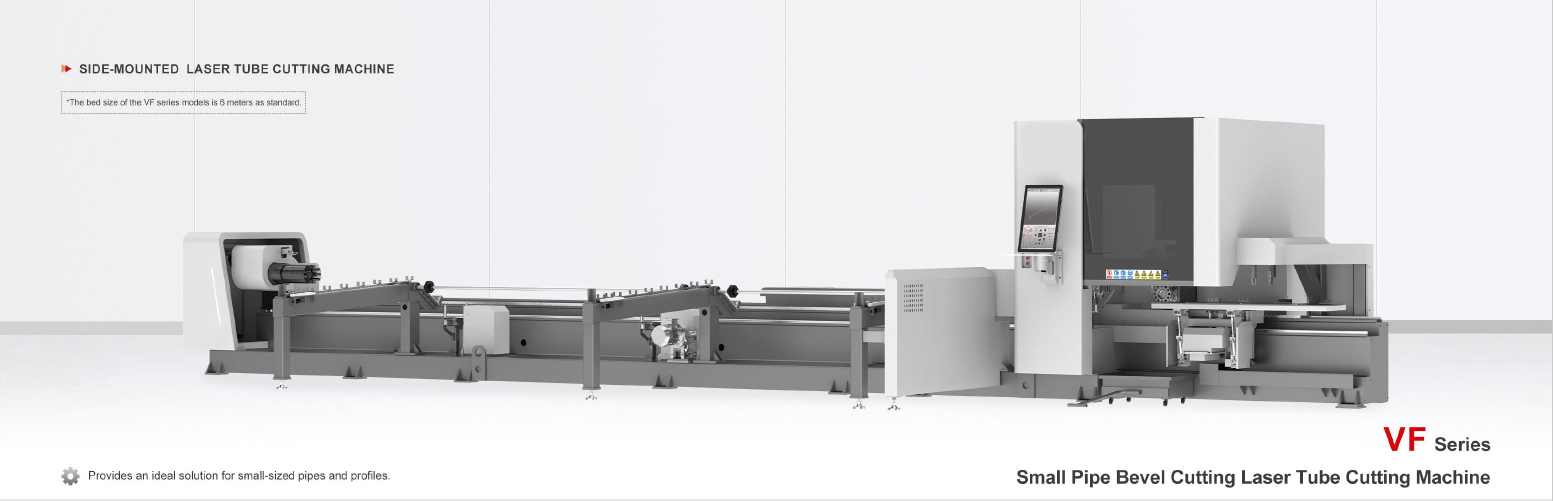

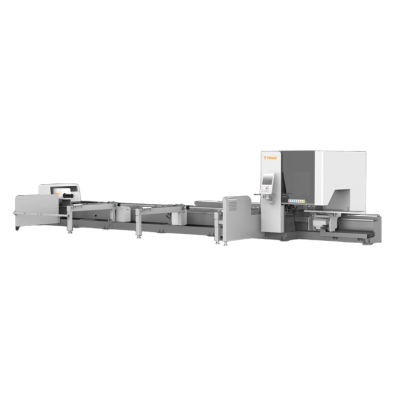

TEKMA VF Series Small Pipe Bevel Cutting Laser Tube Cutting Machine

• Zero Pendulum length 45° bevel technology: The laser head nozzle is positioned at the rotation center, eliminating the need for back-and-forth feeding of pipes, thus avoiding deformation caused by repeated clamping during material handling.
• Rich bevel cutting processes: Adapts to various bevel types without the need for secondary processing,making welding more convenient.
• Motion acceleration can reach up to 1.5G with fast response speed. The chuck rotation speed is high, up to 200 r/min, ensuring excellent dynamic performance.
• The middle chuck can move forward to avoid obstacles, improving cutting precision and reducing waste material.The minimum waste length is just 35mm.

MAINPARAMETRES

China Top Fscut Control Sysem

• More accurate control, faster response, more powerful function and more stable performance, ensure higher efficient and accurate cutting Higher Performance and easier operation

• Support wireless control handle
• Support touch screen operation

China Top Fscut Tube Pro Tube&Profile Cutting Software

• Various types of tubes are available
• More powerful functions, especial in corner cutting, common edge,C,L, beam cutting etc.
• Faster and higher precision cutting
• Cut directly after exporting the files

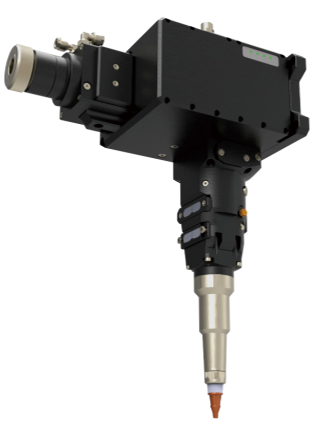

BOCI laser head

• The right-angle cutting head is safer and can reduce the swing angle of the optical fiber, extending the life of the optical fiber.
• The anti-collision design of the cutting head effectively reduces the probability of returning to the factory. Customers can replace it by themselves, which reduces maintenance costs.

Inovance Servo Motors

• Much More Stable, Reliable and Durable
• Well suitable for global and harsh service conditions
• Easy operation and very long life cycle

 FASTON Reducer

• More than 100000 hours life time
• Higher torque,rigidity and efficiency
• More stable and free maintenance

Patented full stroke pneumatic chuck (front)

• 8-cylinder structure, twice clamping force than that of ordinary chucks
• Precision gear drive, more powerful than belt drive,higherprecision
• High rotating speed.200 rounds/min
• Clamp max.120mm different types of tubes
• Automatic centering and quick response

Full stroke pneumatic chuck (rear)

• With buffering ,never damage tubes
• High rotating speed.
• Clamp max.170mm different types of tubes
• Automatic centering and quick response

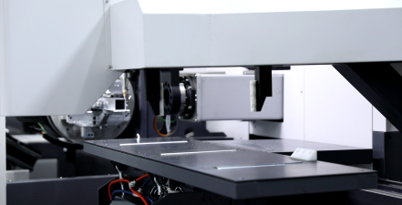

Front-receiving Platform

• The cut work piece can be automatically transferred to the work piece area, and the waste box is placed under the cutting area. Automatic material collection.
• Real-time support. Prevent pipe shaking. Ensure accuracy and cutting effect.
• Unique design can realize automatic separation of waste and finished products. The finished products fall into the finished product box and the waste falls into the waste box.

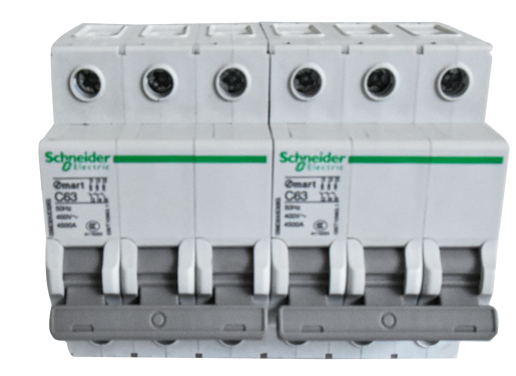

France Schneider Electronic Components

• World famous brand Circuit protection against short-circuit / overload currents.

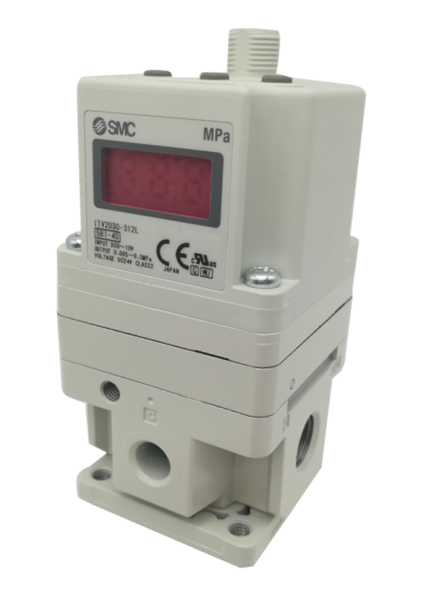

Japan SMC Proportional Valve

• World famous brand
• Control Gas flow perfectly

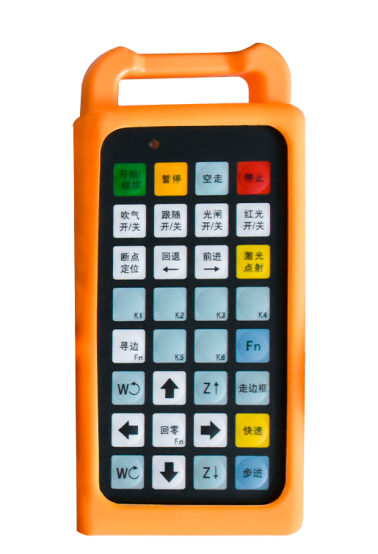

Hand Controller

• Wireless control machine, more simple and convenient
• Control the machine cut, move, stop, blow etc.

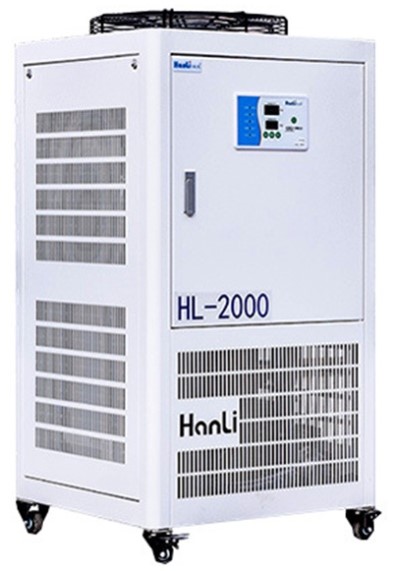

China Hanli Water Chiller

• Unique physical design creates compact structure and reliable performance
• All components are well-known brands at home and abroad, thereby ensuring quality, safety andreliability
• Fully automatic control system,easier to operate
