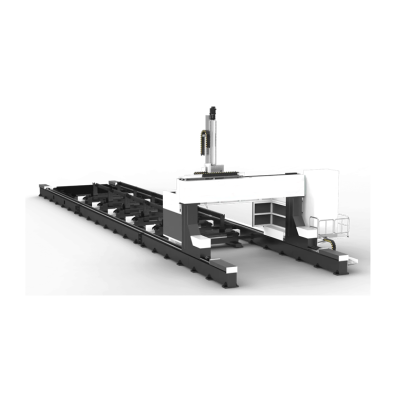

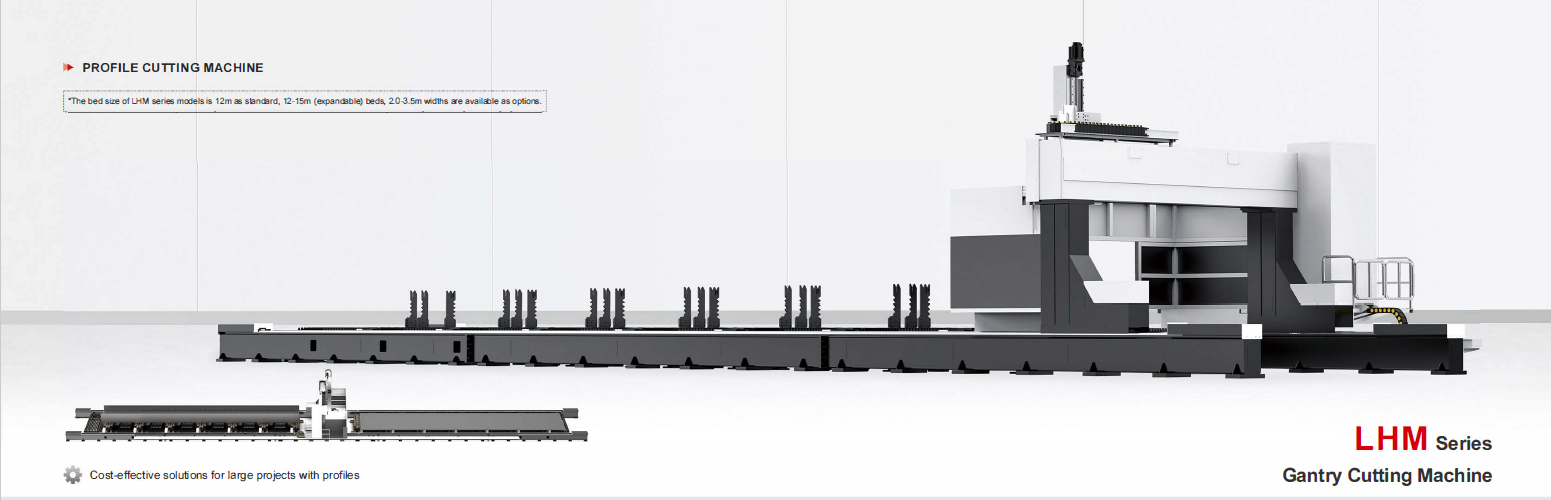

TEKMA LHM-series Gantry Profile Laser Cutting Machine

Cutting ability
two-chuck side hanging laser Tube cutting machine, can cut any metal Tubes, with the length of 6-15m, the diameter 8-640mm, and the weight of 2.6 tons or less. Cutting ability refers to the capability of a tool or machine to cut through a specific material efficiently, based on factors like sharpness, hardness, speed, and precision.

Profiles and plates cutting
hole-cutting, engraving, and marking can be done in one machine.Powerful cutting ability,one-time processing and shaping. Profiles and plates cutting is the process of cutting metal sheets, plates, or structural profiles into desired shapes and sizes using methods like laser cutting, plasma cutting, waterjet cutting, or oxy-fuel cutting.

Connect with Tekla
offering efficient drawing and nesting,Support various bevel cutting processes.

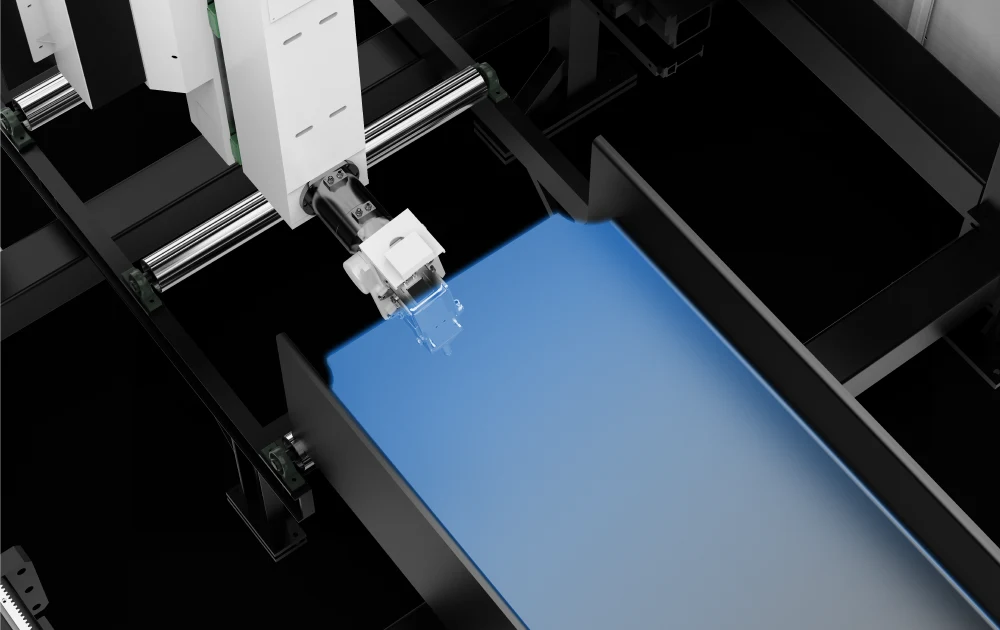

Zero tailing cutting
Special structure design supports zero tailing cutting.

Autonomous Technology

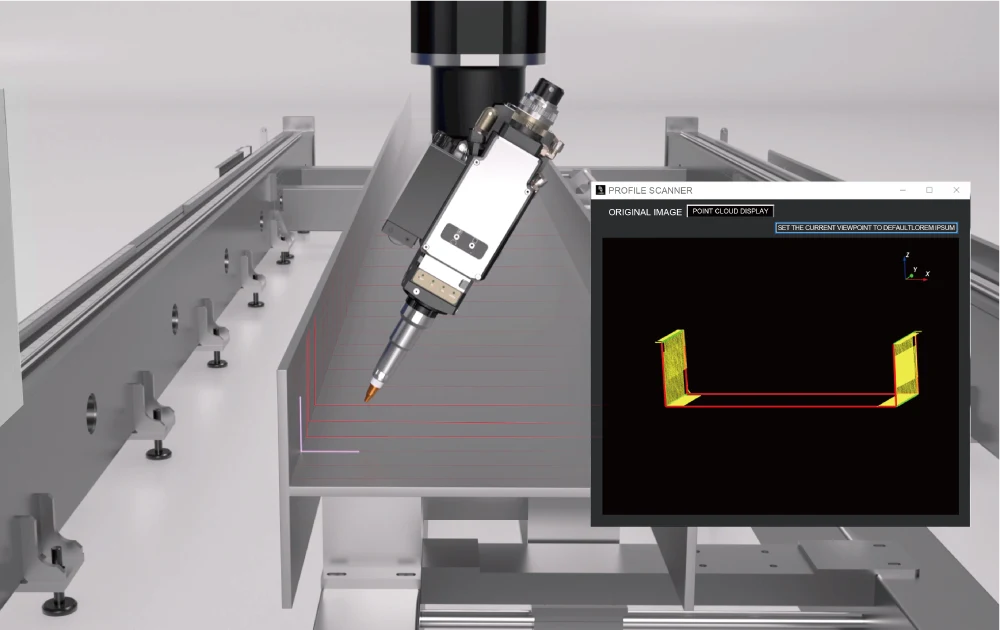

Visual positioning
Adapting contour scanner for visual positioning, measures and compensates for the deviation between the actual workpiece and the drawing, ensures processing accuracy and stability, and avoids the inconsistency between the drawing and the actual workpiece, such as cutting dislocation and non-vertical holes.

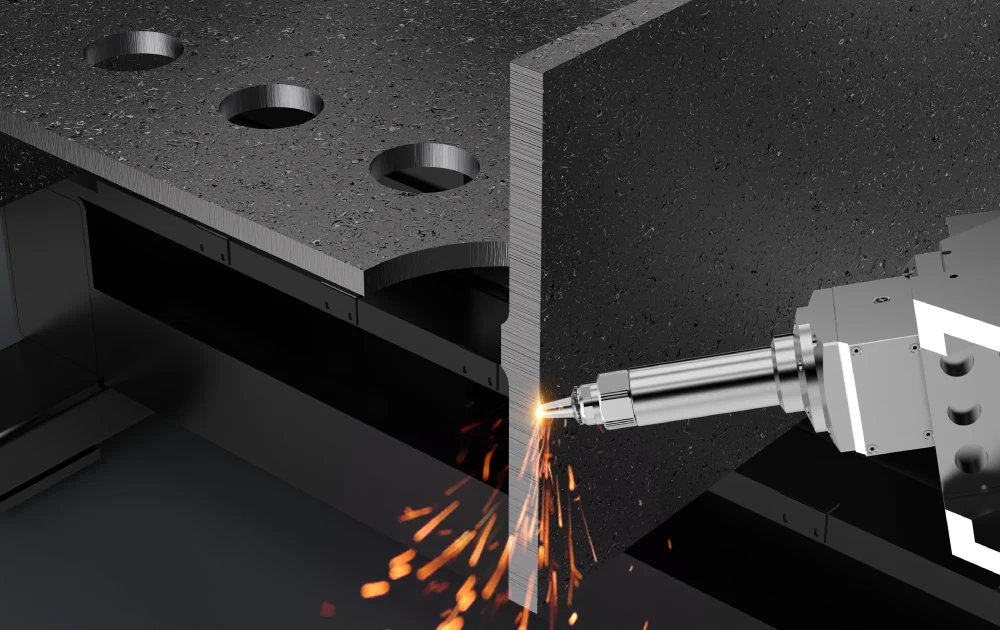

Bevel cutting
It adopts AB axis design dedicated for three-dimensional five-axis profile cutting, which can rotate well. The A-axis and B-axis can rotate ±90°. Its fixed on the side for plates bevel cutting easily.

Zero tailing cutting
Unique structural design supports the whole cutting of raw materials, realizing zero tailing cutting and high utilisation of profiles;
