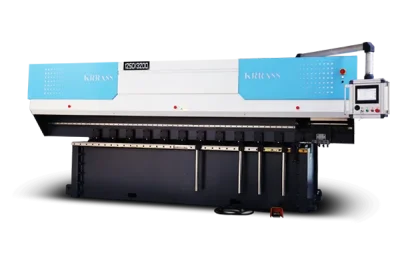

KRRASS Vertical V Grooving Machine

Sheet Metal V Groover

Vertical V Grooving Machine is good at metal sheet accurate grooving,which is good for controling the radius of the bending angle in the subsequent bending process.

• Top performances allow to accurately and cost-efficiently V Groover pieces in high volumes
• Proportional oil hydraulic circuit has been completely designed by KRRASS. It is optimized for every V Grooving Machine size, with high-quality and reliable parts
• Vertical V Grooving Machine is available in a wide range of models and powers. Length and shearing thickness can be customized to the highest levels in the category

Standard Equipment

• Controller: HUST CNC Controller - Taiwan

• Serivo Motor: Panasonic - Japan

• Hight-Precise Ball Screw: HINWIN - Taiwan

• Hight-Precise Linear Guide Rail: HINWIN - Taiwan

• Gear-rack drive: YYC - Taiwan

• Touching Ball Bearing: NSK - Japan

• Grooving Cutter: KORLOY - Korea

• Electrical Element: AIRTAC - Taiwan

• Air Cylinder: AIRTAC - Taiwan

• Power Cable: IGUS - Germany

Introduction to Configuration

Stable Accurate Quiet

The frame steel plate is processed by a large gantry center with hight precision.The frame is processed by automactic welding equipment,and the welding seam is uniform.This ensures the high rigidity of the entire frame.

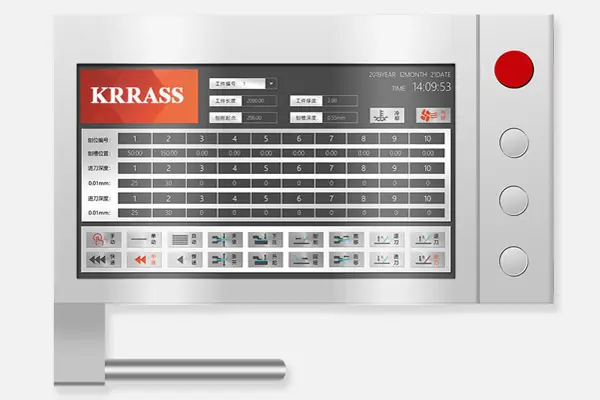

HUST CNC A60C Control

• 15 inch CNC touch display

• Acceleration / deceleration response time: 0.5US

• With fallback function

• PLC interrupt function: scan time is

• Fixed at 10ms

• Avoid collision

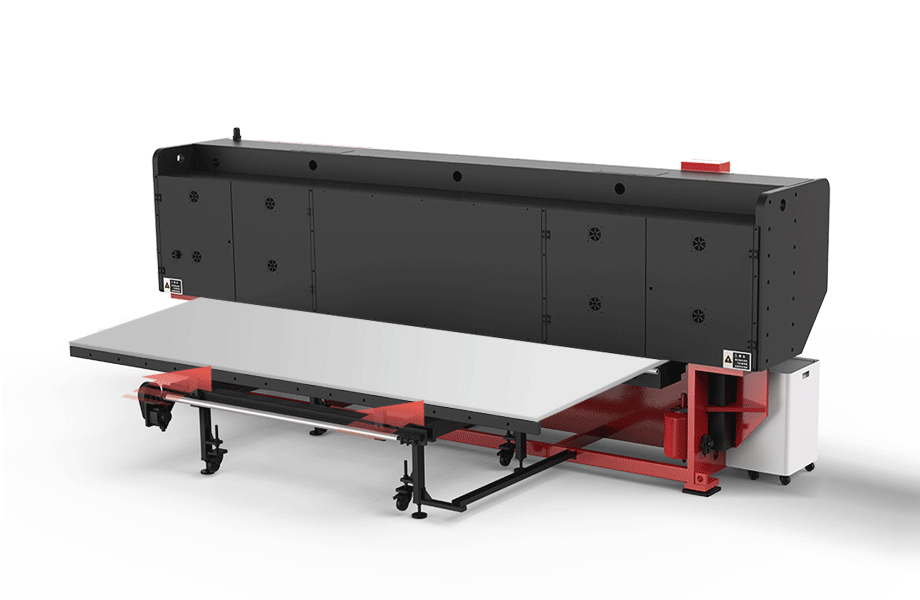

Accurate Back Support Device

The Plate is fed into machine by back clamp on back support device,And the feeding tolerance is ±0.03mm.The Plane of the pallet is strengthened to make it more wear-resistant.

More Details of Sheet Metal V Groover

Schneider Low Voltage Electric Parts

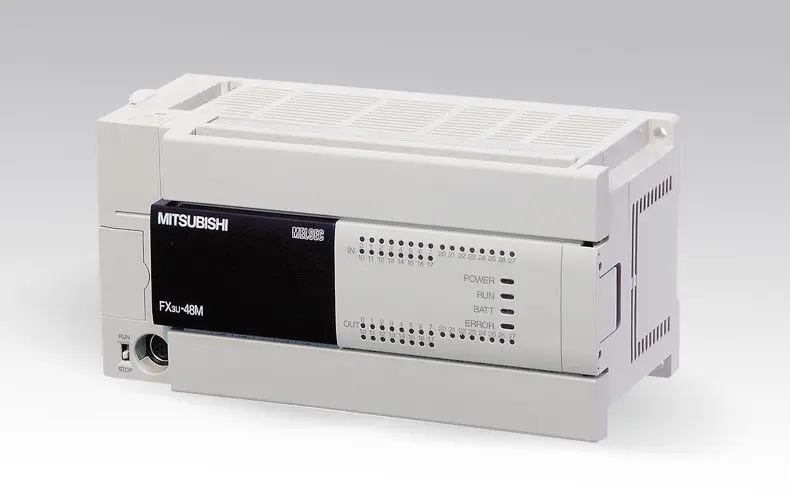

Mitsubishi PLC From Japan

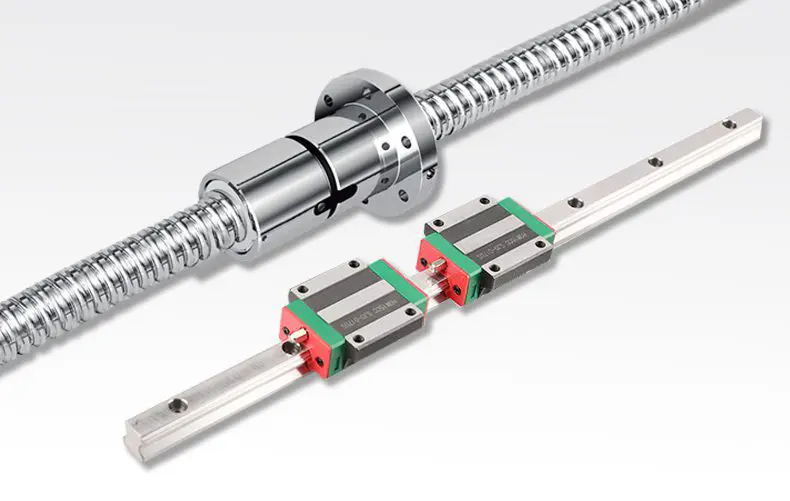

Hiwin Balll Screw & Linear Guide from Taiwan

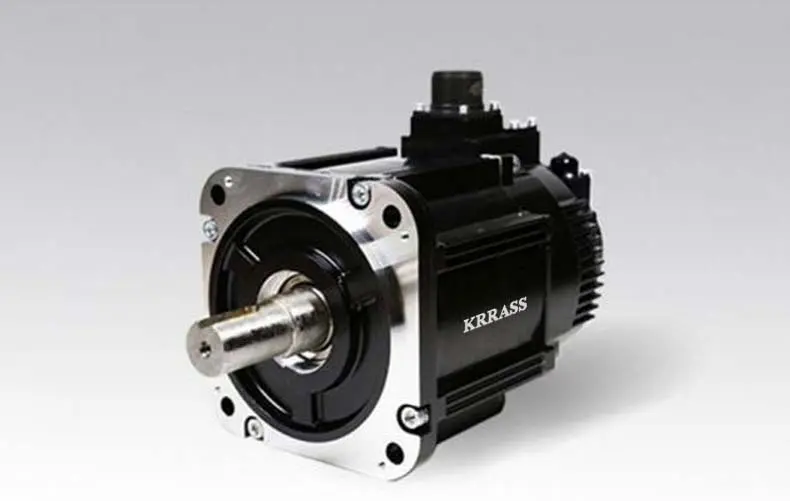

Servo Motor

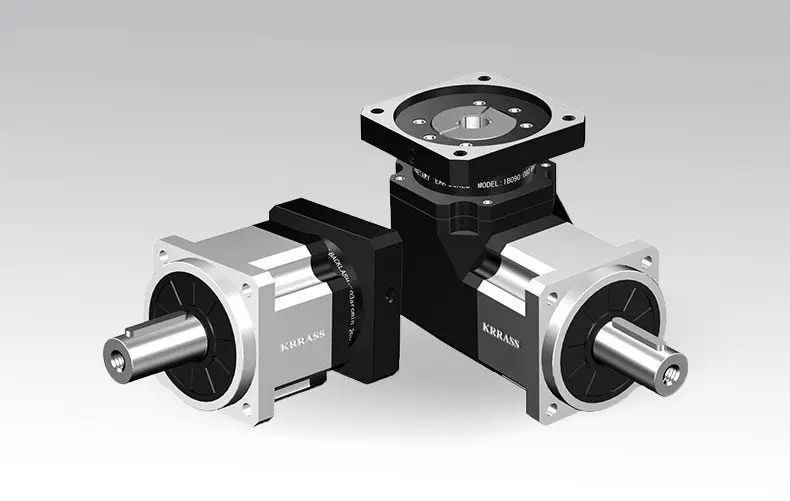

Zhuolan Planetary Reducer

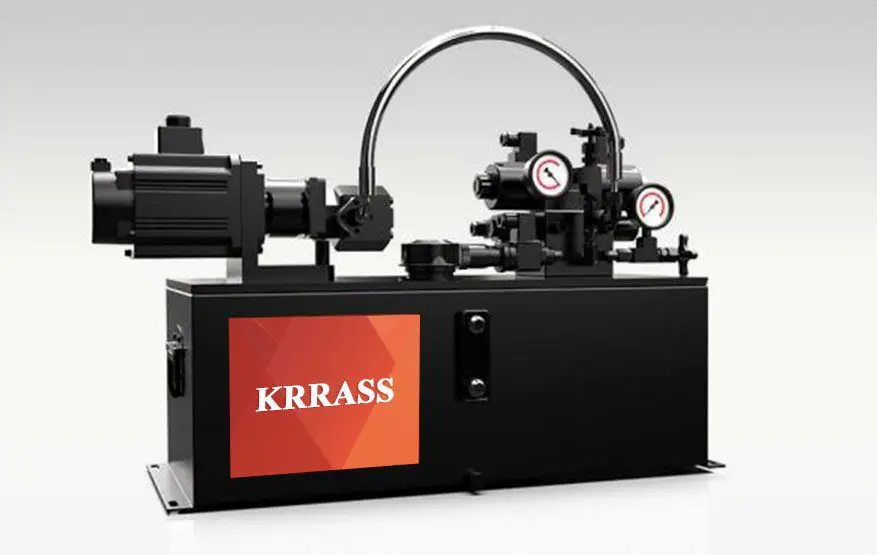

Self-developed hydraulic control system

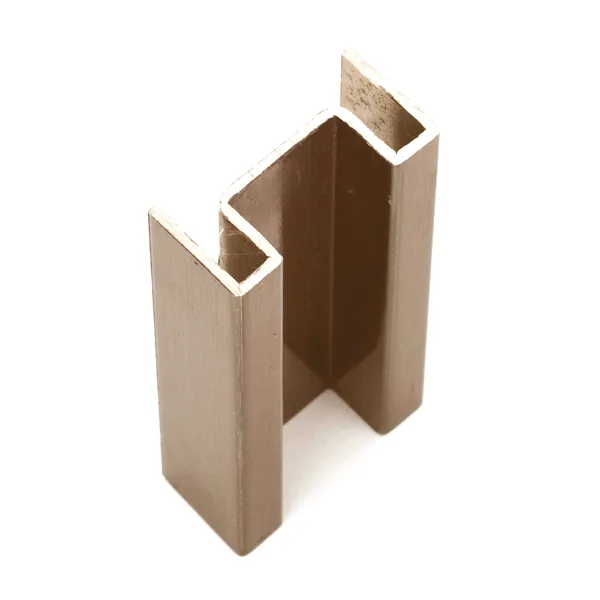

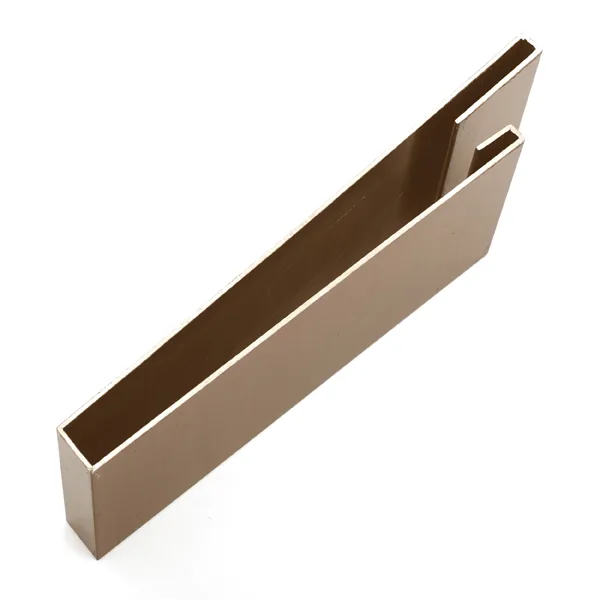

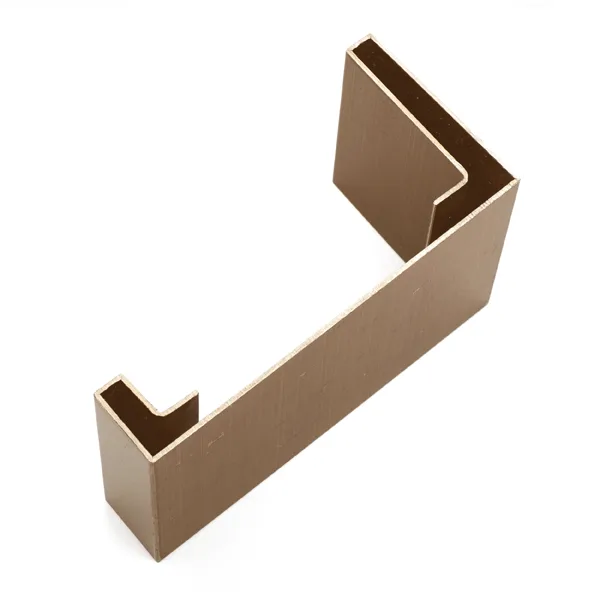

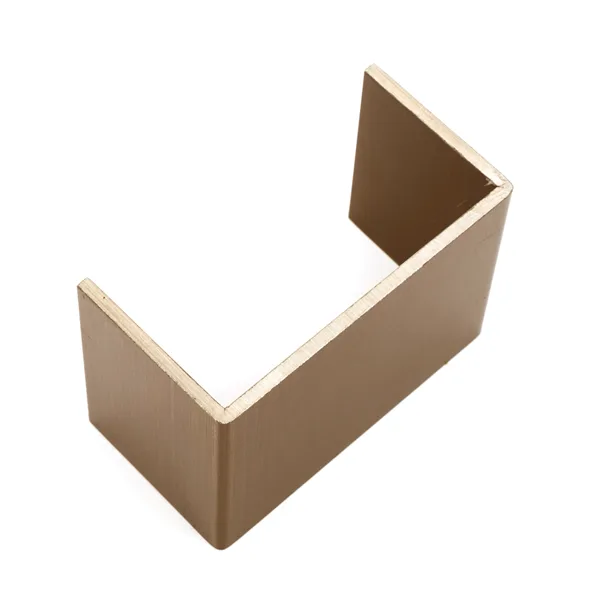

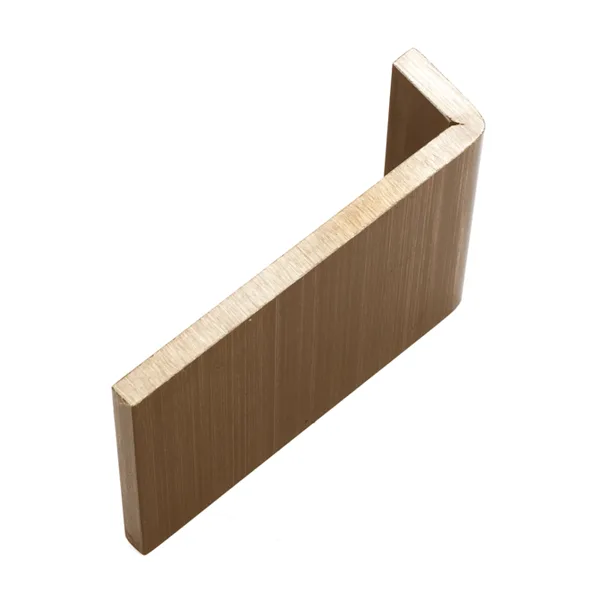

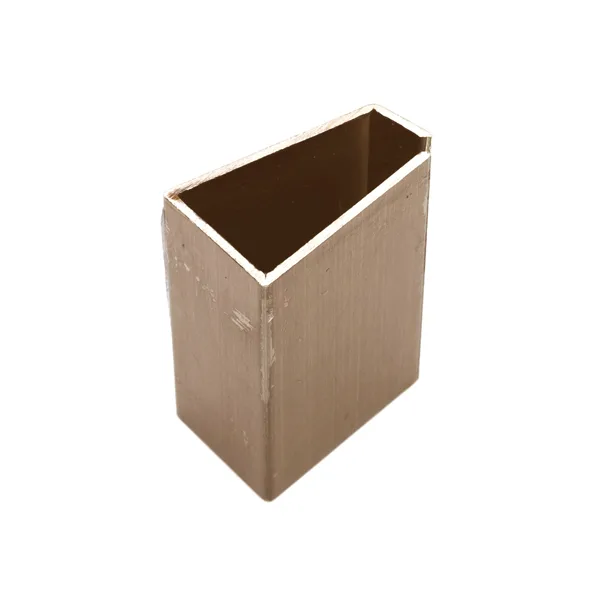

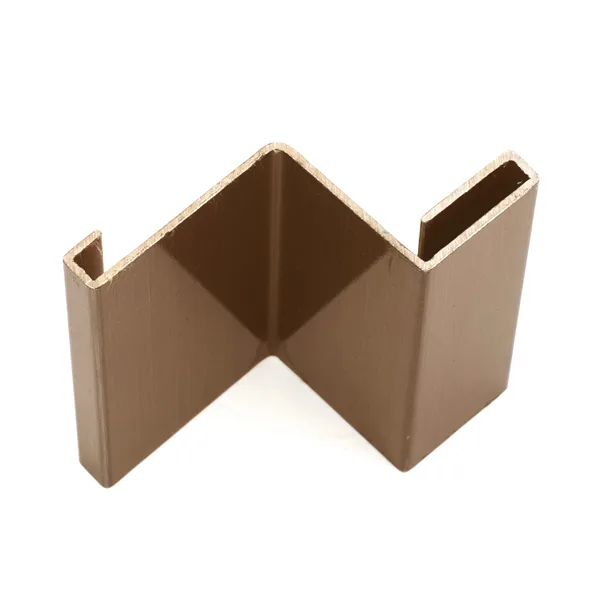

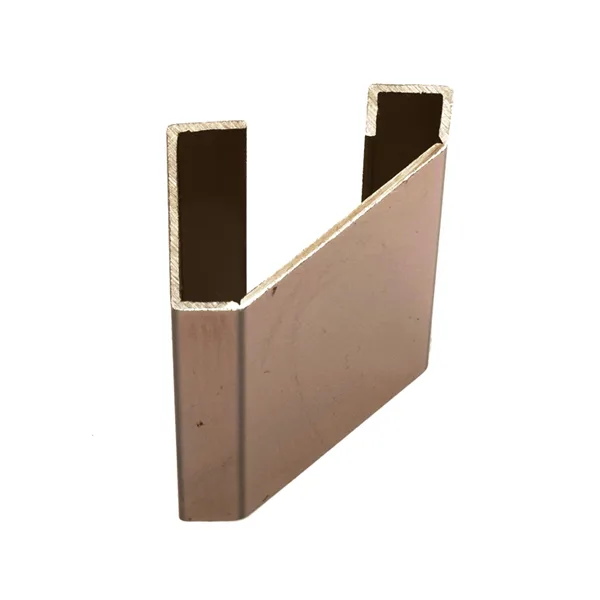

Slotting Case of Sheet Metal V Groover
