KRRASS Adjustable Angle Notching Machine

High Standard Angle Adjustable Notching Machine

Our hydraulic angle adjustable notching machine is a fixed and angle adjustment notching machine. It has a strong and durable body structure and a steel-construction table. The machine allows precise and quick adjustment of the desired cutting angle within 30 to 140 degrees with the help of a function mounted on the machine table. Angle adjustable notching machines are machined with T-slots on the top surface, which can be used to precisely adjust the angle and depth of the cut corners. Automatic cutting gap adjustment can be adjusted according to the type and thickness of the material, thus providing high cutting quality and precision.

• Standard Manual Drop-End
• Optional Control Panel with digital read-out
• Tailored-made Notching Machine

Features

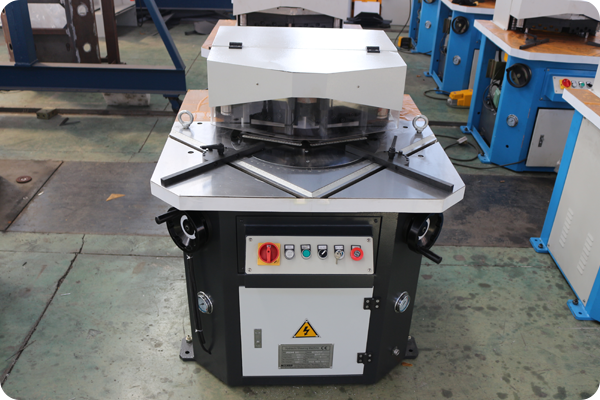

• 2 hand wheels to set eadily the notching angle

• Protractor to adjust precisely the notching angle

• Squaring guides, scales, and angle gauge

• Automatic blade gap adjustment for all sheet thicknesses

• Optimal safety for operators thanks to front, back & side protectors

• Optimal safety foScrap collecting systemr operators thanks to front, back & side protectors

Capacities

• Cutting length up to 200 mm

• Cutting thickness capacity up to 6 mm for a density of 42 kg / mm2

• Cutting thickness capacity up to 3 mm for a density of 70 kg / mm2

• Cutting angle: 5°

• Notching angle (3 mm): 30-140°

• Cuts per minute: 50

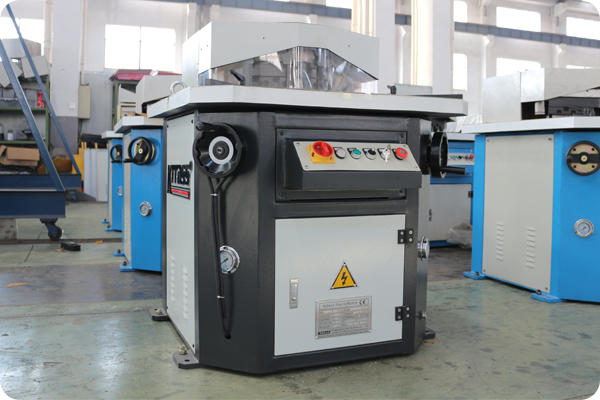

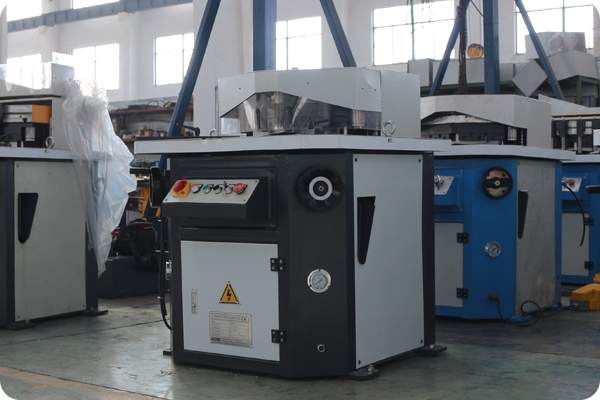

 More Detail of Fixed Angle Notching Machine
