KRRASS Horizontal V Grooving Machine

Sheet Metal V Groover

Horizontal V Grooving Machine is good at metal sheet accurate grooving,which is good for controling the radius of the bending angle in the subsequent bending process.

• Top performances allow to accurately and cost-efficiently V Groov pieces in high volumes.
• Proportional oil hydraulic circuit has been completely designed by KRRASS. It is optimized for every V Grooving Machine size, with high-quality and reliable parts.
• Horizontal V Grooving Machine is available in a wide range of models and powers. Length and shearing thickness can be customized to the highest levels in the category.

Standard Equipment

• Controller: HUST CNC Controller - Taiwan
• Serivo Motor: Panasonic - Japan
• Hight-Precise Ball Screw: HINWIN - Taiwan
• Hight-Precise Linear Guide Rail: HINWIN - Taiwan
• Gear-rack drive: YYC - Taiwan
• Touching Ball Bearing: NSK - Japan
• Grooving Cutter: KORLOY - Korea
• Electrical Element: AIRTAC - Taiwan
• Air Cylinder: AIRTAC - Taiwan
• Power Cable: IGUS - Germany

Introduction to Configuration

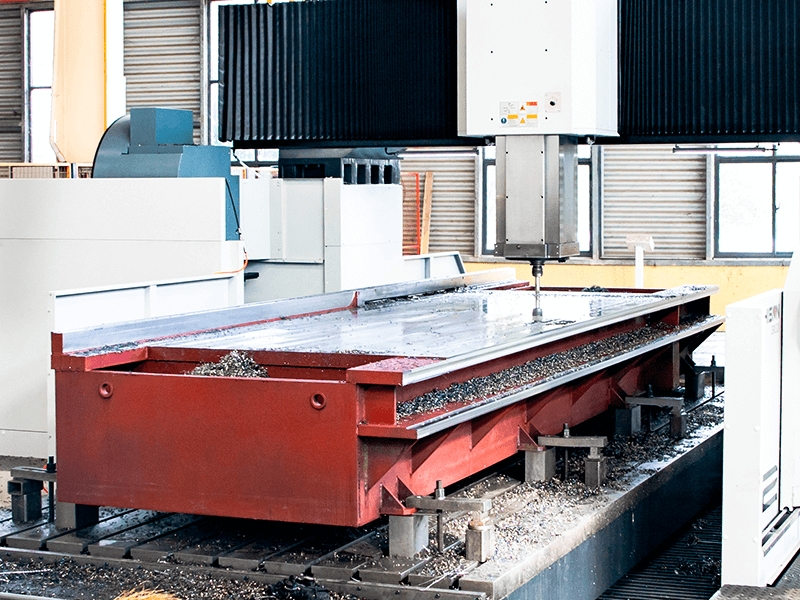

Stable Accurate Quiet

The frame structure design is adopted for the machine base and beam, 60mm low alloy high-strength structural steel is used for the worktable, and Q345 steel plate is used for the frame. The overall rigidity of the machine tool is good, firm and durable.

HUST CNC Control System

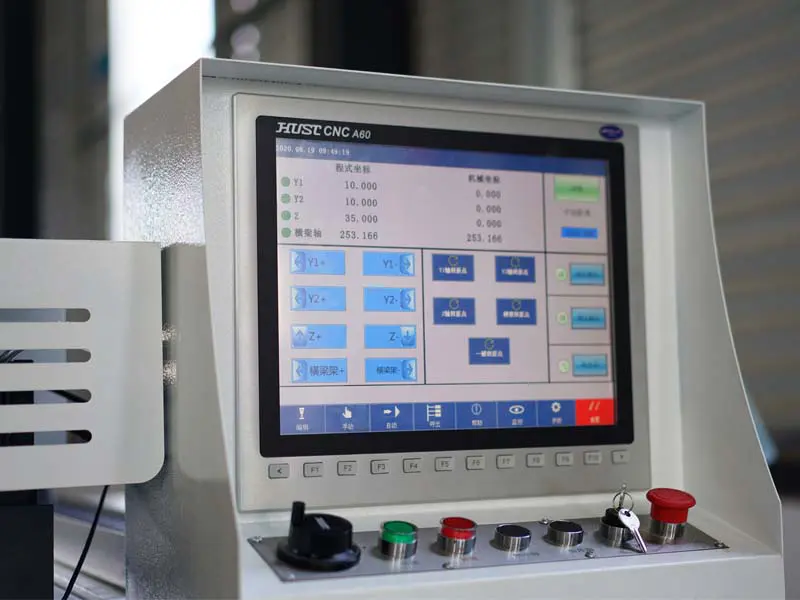

HUST CNC A60C Control

• 15 inch CNC touch display
• Acceleration / deceleration response time: 0.5US
• With fallback function
• PLC interrupt function: scan time is
• Fixed at 10ms
• Avoid collision

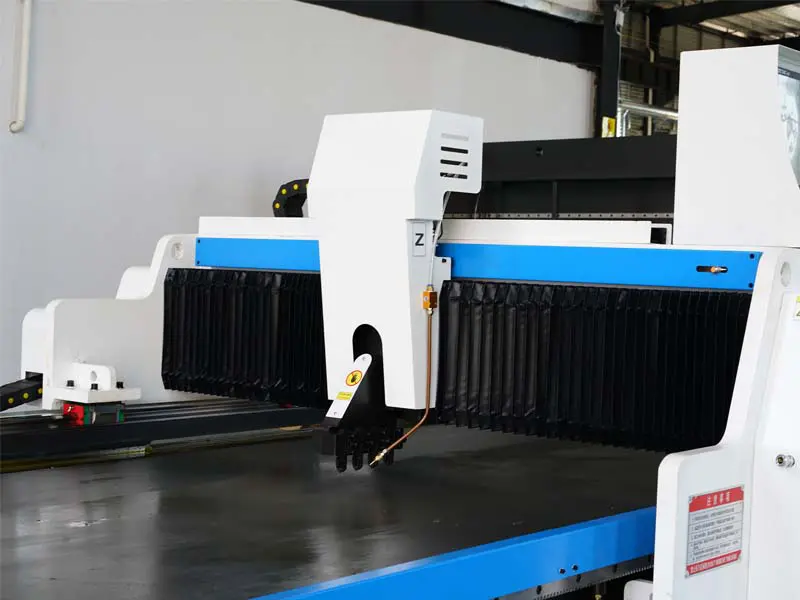

Alloy Blade

• The processing technology of four grooving cutters is adopted, so that each blade during processing can be grooved evenly.
• The blade is made of alloy steel.
• Double nozzle blowing is adopted to clean debris more thoroughly.

More Details of Sheet Metal V Groover

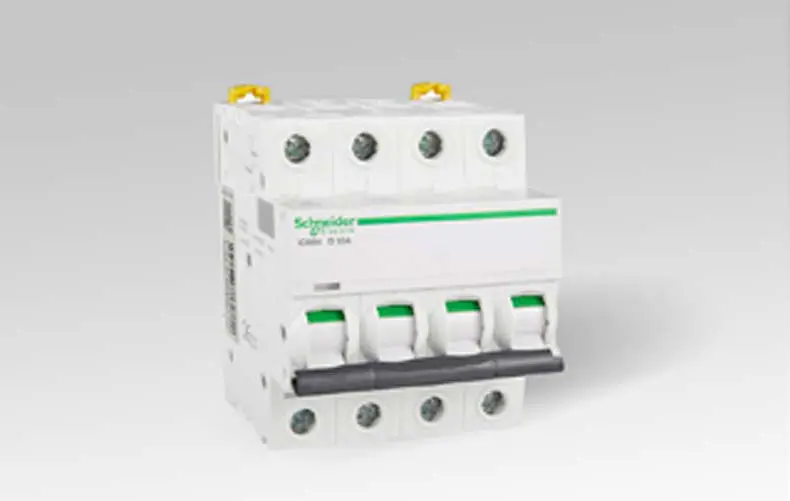

Schneider Low Voltage Electric Parts

Mitsubishi PLC From Japan

Hiwin Balll Screw&Linear Guide from Taiwan

Servo Motor

Zhuolan Planetary Reducer

Self-developed hydraulic control system

Slotting Case of Sheet Metal V Groover
